The Role of EDM in Modern Manufacturing: Precision and Innovation Combined
As a leading plastic injection mold manufacturer in China, Elite is committed to delivering high-quality plastic injection molds and molded parts at competitive prices. Over the years, our expertise in manufacturing has been enhanced by the use of advanced technologies like Electrical Discharge Machining (EDM). In this article, we’ll explore the role of EDM in modern manufacturing, highlighting how it combines precision and innovation to meet the demands of today's high-tech industries.
What is Electrical Discharge Machining (EDM)?
Electrical Discharge Machining (EDM) is a highly accurate machining process that uses electrical discharges to remove material from a conductive workpiece. Unlike traditional cutting methods, EDM does not rely on mechanical force, making it ideal for creating complex and delicate parts with high precision.
How Does EDM Work?
EDM operates by generating controlled sparks between an electrode and the workpiece, removing material through a process of electrical erosion. This occurs in the presence of a dielectric fluid, which cools the workpiece and flushes away debris. The electrode never touches the material, which allows for high-precision machining without causing mechanical stress.
Key Components of EDM:
- Electrode: The tool that creates the electrical discharges, often made from copper, graphite, or tungsten.
- Dielectric fluid: A non-conductive fluid that insulates the spark and cools the workpiece.
- Workpiece: The material being machined, typically a hard metal like steel, carbide, or titanium.
The Role of EDM in Modern Manufacturing
EDM has become a cornerstone of modern manufacturing, offering unparalleled precision and flexibility. It plays a crucial role in industries that demand intricate designs, tight tolerances, and hard-to-machine materials. At Elite, we use EDM extensively in our plastic injection mold manufacturing to achieve the highest levels of accuracy and quality.
1. Precision in Mold Manufacturing
In the world of plastic injection mold manufacturing, precision is paramount. Molds must be accurate to ensure that the molded parts meet exact specifications. EDM allows manufacturers to create highly detailed mold cavities and complex shapes that would be difficult or impossible to achieve with traditional machining methods.
Benefits of Precision in Mold Manufacturing:
- Tight tolerances: EDM enables us to achieve tolerances as tight as ±0.001mm, ensuring that the molds produce parts with exact dimensions.
- Complex geometries: Intricate details, sharp corners, and deep cavities can be machined with ease, resulting in molds that meet the most demanding design requirements.
- Consistency: EDM provides consistent accuracy across multiple production runs, ensuring uniform quality.
2. Machining Hard and Exotic Materials
Modern manufacturing often involves working with materials that are difficult to machine using traditional methods, such as hardened steel, carbide, and titanium. EDM excels at machining these tough materials without introducing mechanical stress or thermal distortion, making it an essential tool in industries such as aerospace, automotive, and medical devices.
Benefits for Hard-to-Machine Materials:
- No deformation: Since EDM does not involve direct contact with the material, there is no risk of warping or bending during the machining process.
- High material integrity: EDM maintains the material’s original properties, ensuring that parts retain their strength and durability.
- Precision in tough materials: EDM can machine hard materials with the same level of precision as softer ones, providing flexibility in material selection.
3. Innovation in Complex Part Production
EDM is not only a tool for precision but also a driver of innovation in part design and production. It allows manufacturers to push the boundaries of what is possible in part complexity. This is particularly valuable for industries that require highly specialized components, such as electronics, medical equipment, and consumer products.
Innovative Applications of EDM:
- Micro-machining: EDM can create extremely small and intricate parts, making it ideal for applications like micro-electronics and precision medical devices.
- Intricate internal features: EDM can machine deep cavities, sharp internal corners, and other complex internal features that would be impossible with conventional machining techniques.
- Custom designs: EDM is highly adaptable, allowing for the production of custom molds and parts that meet unique design specifications.
EDM Techniques Used at Elite
At Elite, we employ various EDM techniques to ensure that we can meet the diverse needs of our clients. These techniques allow us to produce high-quality molds and parts with exceptional precision, even when working with complex designs and hard materials.
1. Sinker EDM
Sinker EDM, also known as Die-Sinking EDM, uses a custom-shaped electrode to "sink" into the workpiece, creating cavities and detailed shapes. This technique is particularly valuable for creating intricate mold cavities that require sharp internal corners and deep recesses.
Applications of Sinker EDM:
- Complex mold cavities: Used to create highly detailed and intricate cavities in molds.
- Hard materials: Effective for machining tough materials like hardened steel and carbide.
- Fine surface finishes: Provides excellent surface finishes, reducing the need for post-machining processing.
2. Wire EDM
Wire EDM uses a thin, electrically charged wire to cut through the workpiece. This technique is ideal for creating precise, fine details and complex external shapes. Wire EDM is often used to cut intricate patterns or profiles in hardened metals.
Applications of Wire EDM:
- Precision cutting: Ideal for creating highly accurate cuts with tight tolerances.
- Fine details: Perfect for parts that require delicate and complex designs.
- Hardened materials: Capable of cutting through hardened steel, carbide, and other tough metals with ease.
3. Hole Drilling EDM
Hole Drilling EDM is a specialized technique used to create small, precise holes in hard materials. This method is particularly useful for drilling holes in molds or other components that require fine, accurate apertures.
Applications of Hole Drilling EDM:
- Micro-holes: Ideal for drilling small, precise holes in tough materials.
- Starter holes: Often used to create starter holes for wire EDM operations.
- Hard materials: Can drill through hardened materials without causing distortion or thermal damage.
The Benefits of EDM in High-Tolerance Manufacturing
EDM is widely regarded as one of the most effective tools for high-tolerance manufacturing. At Elite, we rely on EDM to produce molds and parts with extremely tight tolerances, ensuring that our clients receive products that meet their exact specifications.
1. Achieving Tight Tolerances
The non-contact nature of EDM makes it ideal for high-precision machining. EDM allows us to achieve tight tolerances that meet the stringent requirements of industries like aerospace, automotive, and medical devices.
Benefits for High-Tolerance Applications:
- Precision: Achieves tolerances as tight as ±0.001mm, ensuring accurate dimensions and reducing the risk of part rejection.
- Consistency: EDM provides uniform precision across multiple production runs, ensuring consistent part quality.
- Minimal errors: The high accuracy of EDM reduces the risk of errors, resulting in less rework and waste.
2. Reducing Lead Times and Costs
While EDM is a highly precise and advanced technology, it also offers time and cost efficiencies. By eliminating the need for complex tooling and reducing the risk of material waste, EDM can shorten production times and lower overall costs.
Cost and Time Benefits:
- Faster production: EDM reduces lead times by enabling faster machining of complex parts.
- Lower tool wear: The non-contact nature of EDM means there is minimal tool wear, reducing the need for frequent tool replacement.
- Cost savings: By minimizing rework and waste, EDM helps reduce manufacturing costs while maintaining high quality.
How Elite Combines Precision and Innovation with EDM
At Elite, we harness the power of EDM technology to combine precision and innovation in our manufacturing processes. By leveraging advanced EDM techniques, we can produce complex molds and components that meet the highest quality standards, all while maintaining competitive pricing.
1. Customized Mold Solutions
Every project has unique requirements, and Elite tailors its EDM machining processes to meet the specific needs of each client. Whether you need intricate mold cavities, small holes, or complex external contours, we use the most appropriate EDM technique to ensure the best results.

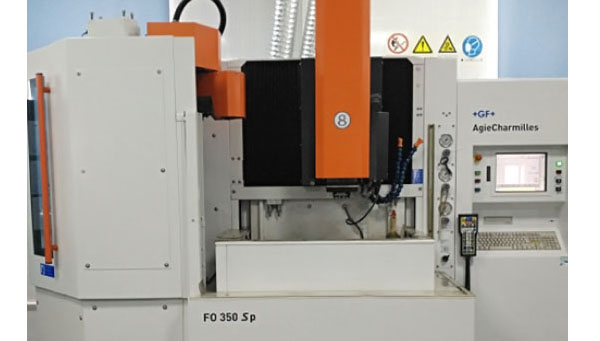

2. State-of-the-Art EDM Equipment
We invest in the latest EDM machinery to deliver precision and efficiency in our manufacturing operations. Our advanced equipment allows us to handle even the most complex and demanding projects with tight tolerances and high-quality surface finishes.
3. Efficient Production with Competitive Pricing
At Elite, we combine high-quality production with cost-effective solutions. Our efficient EDM processes help reduce lead times, minimize waste, and ensure that we can offer competitive pricing without compromising on quality.
Conclusion
Electrical Discharge Machining (EDM) plays a critical role in modern manufacturing by offering a combination of precision and innovation. At Elite, we use EDM to produce high-quality molds and parts that meet the most demanding specifications, all while keeping costs competitive. Whether you need complex mold designs, high-precision parts, or machining of hard materials, Elite has the experience and expertise to deliver superior results.
Contact us today to learn how our EDM capabilities can enhance your next project!
