Tackling Challenges in Complex Mold Design: Tips for Precision and Efficiency

As a leading plastic injection mold manufacturer in China, Elite has extensive experience in producing high-quality injection molds and molded parts. Over the years, we have perfected techniques to overcome the challenges of complex mold design while ensuring both precision and efficiency. Complex molds require advanced knowledge of materials, geometry, and production processes, making it crucial to employ best practices for achieving superior results. In this article, we will explore key tips for addressing the challenges of complex mold design and how Elite delivers top-tier plastic injection molds at competitive prices.

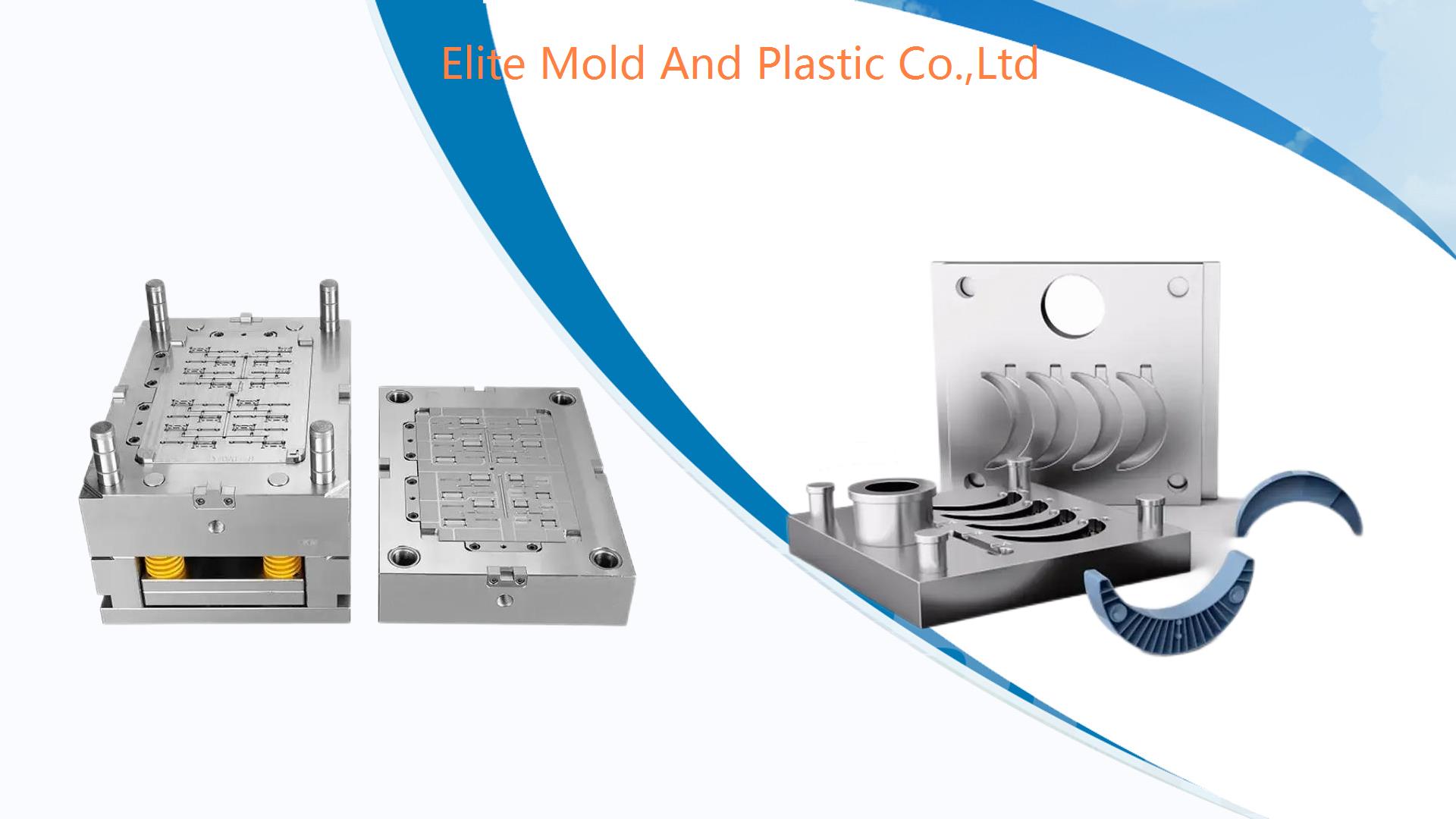

Understanding the Challenges in Complex Mold Design

Mold design becomes more complex when parts feature intricate geometries, tight tolerances, or when specific functionality is required. Some of the common challenges in complex mold design include:

  • Maintaining dimensional accuracy and precision across the mold's cavities
  • Balancing cooling rates to avoid warping, shrinkage, or other defects
  • Managing complex part geometries such as undercuts, threads, or multiple cavities
  • Ensuring high efficiency while avoiding long cycle times or excessive material usage

To meet these challenges, a well-thought-out design strategy and advanced manufacturing capabilities are essential.


Best Practices for Precision in Complex Mold Design

At Elite, we adhere to industry-leading practices to ensure precision and maintain the highest standards in mold design. Below are some of the key considerations and techniques we use to tackle complex mold design challenges.

1. Optimize Mold Flow Analysis

Importance of Mold Flow Analysis

Mold flow analysis is an essential step in the design process, especially for complex parts. It simulates the flow of molten plastic through the mold cavity, allowing for:

  • Early identification of potential defects like air traps, weld lines, or sink marks
  • Optimized gate placement and material flow paths
  • Reduced likelihood of warping or shrinkage by analyzing cooling behavior

By using mold flow analysis, Elite ensures that we can predict and resolve issues before manufacturing, resulting in more precise molds.

2. Minimize Undercuts and Complex Geometries

Strategies to Handle Undercuts

Undercuts and complex geometries increase the difficulty of mold production, often requiring additional mechanisms like side actions or lifters. To reduce complexity:

  • Design with simplicity: Where possible, we simplify the geometry to minimize undercuts without compromising part functionality.
  • Use lifters and slides: When undercuts are necessary, we employ precision lifters and slides to accommodate the design without impacting mold efficiency.
  • Multi-part molds: In some cases, multi-part molds can be designed to handle complex geometries and improve part accuracy.

3. Use High-Precision Tooling for Tight Tolerances

Ensuring Dimensional Accuracy

For parts requiring tight tolerances, high-precision tooling is critical. This ensures that parts meet specifications with minimal variation. Elite employs advanced CNC machining and EDM (Electrical Discharge Machining) technologies to achieve:

  • Accurate cutting of mold components
  • Consistent and repeatable dimensions
  • Reduced need for post-production adjustments

Precision tooling allows for complex mold designs that meet even the most stringent quality requirements.

Enhancing Efficiency in Complex Mold Design

While precision is crucial, efficiency in production is equally important. Efficient mold design reduces cycle times, minimizes waste, and optimizes the overall manufacturing process. Here are some of the ways Elite enhances efficiency in complex mold design.

1. Use Hot Runner Systems

Benefits of Hot Runner Systems

Hot runner systems are highly efficient for complex molds as they keep the plastic in the runner system molten, eliminating the need for sprue or runner waste. Benefits include:

  • Faster cycle times: By avoiding the solidification of sprues, cycle times are shortened.
  • Reduced material waste: No need for trimming runners or reprocessing material, leading to material savings.
  • Consistent part quality: Maintaining a uniform melt temperature ensures consistent part filling, even in complex cavities.

2. Design for Cooling Efficiency

Importance of Cooling Optimization

Cooling is a critical phase of the injection molding process, particularly in complex molds. Uneven cooling can cause warping, sink marks, or dimensional inaccuracies. Elite designs molds with optimized cooling channels to:

  • Ensure uniform cooling throughout the mold cavity
  • Reduce cycle times by speeding up the cooling phase
  • Minimize defects caused by uneven thermal expansion

We also use conformal cooling techniques in certain applications, where cooling channels are designed to follow the part's contours, improving heat dissipation.

3. Modular Mold Design

Flexibility with Modular Molds

For complex parts, modular mold designs can improve efficiency by allowing for interchangeable components. This flexibility enables:

  • Quicker mold changes: Modules can be swapped without rebuilding the entire mold.
  • Cost savings: Parts that share common features can use the same base mold, with modular inserts for different geometries.
  • Scalability: Molds can be easily modified or expanded for new product versions or production runs.

At Elite, we utilize modular design principles for clients who require multi-part assemblies or product families.

4. Multi-Cavity Molds for High-Volume Production

Maximizing Output with Multi-Cavity Molds

For high-volume production, multi-cavity molds are an excellent option for improving efficiency. By producing multiple parts in a single cycle, these molds offer:

  • Increased production output: Multiple parts are produced simultaneously, reducing overall cycle times.
  • Cost efficiency: Fewer runs are needed to meet high production demands, reducing labor and machine usage costs.
  • Consistency: Multi-cavity molds ensure that each part is identical, maintaining consistent quality across large quantities.

We carefully balance mold complexity with the number of cavities to maintain both precision and efficiency in multi-cavity molds.

Troubleshooting Common Complex Mold Design Issues

Even with best practices, complex mold designs can present challenges during production. Here are some common issues and how Elite addresses them.

1. Warping and Shrinkage

Warpage and shrinkage can be problematic in complex parts, especially when the design involves varying wall thicknesses. To mitigate this:

  • Optimize wall thickness: We ensure uniform wall thickness where possible and strategically place ribs to prevent distortion.
  • Control cooling rates: By designing efficient cooling channels, we minimize differential cooling, reducing warping and shrinkage.

2. Flashing

Flashing occurs when molten plastic escapes from the mold cavity, creating excess material along parting lines. To reduce flashing:

  • Ensure precise mold clamping: We design molds with tight tolerances to ensure proper clamping and avoid gaps.
  • Monitor injection pressure: We adjust the injection pressure to prevent excessive material flow that could cause flashing.

3. Inconsistent Part Quality

Inconsistent part quality can arise from imbalances in multi-cavity molds or improper filling. Elite addresses this by:

  • Balancing runner systems: We ensure that each cavity receives the same amount of material for uniform part quality.
  • Implementing quality control measures: Throughout production, we continuously monitor and adjust parameters to maintain consistent quality.

Conclusion

Complex mold design requires a high level of expertise and precision to overcome the inherent challenges while maintaining efficiency. As a trusted plastic injection mold manufacturer, Elite utilizes advanced tools, best practices, and innovative solutions to tackle these challenges head-on. By focusing on precision and efficiency, we ensure that our clients receive high-quality, cost-effective molded parts that meet their exact specifications.

If you’re looking for a reliable partner to help you navigate the challenges of complex mold design, Elite is here to help. Contact us today to learn more about our services and how we can support your plastic injection molding needs with top-quality molds and unparalleled expertise.
