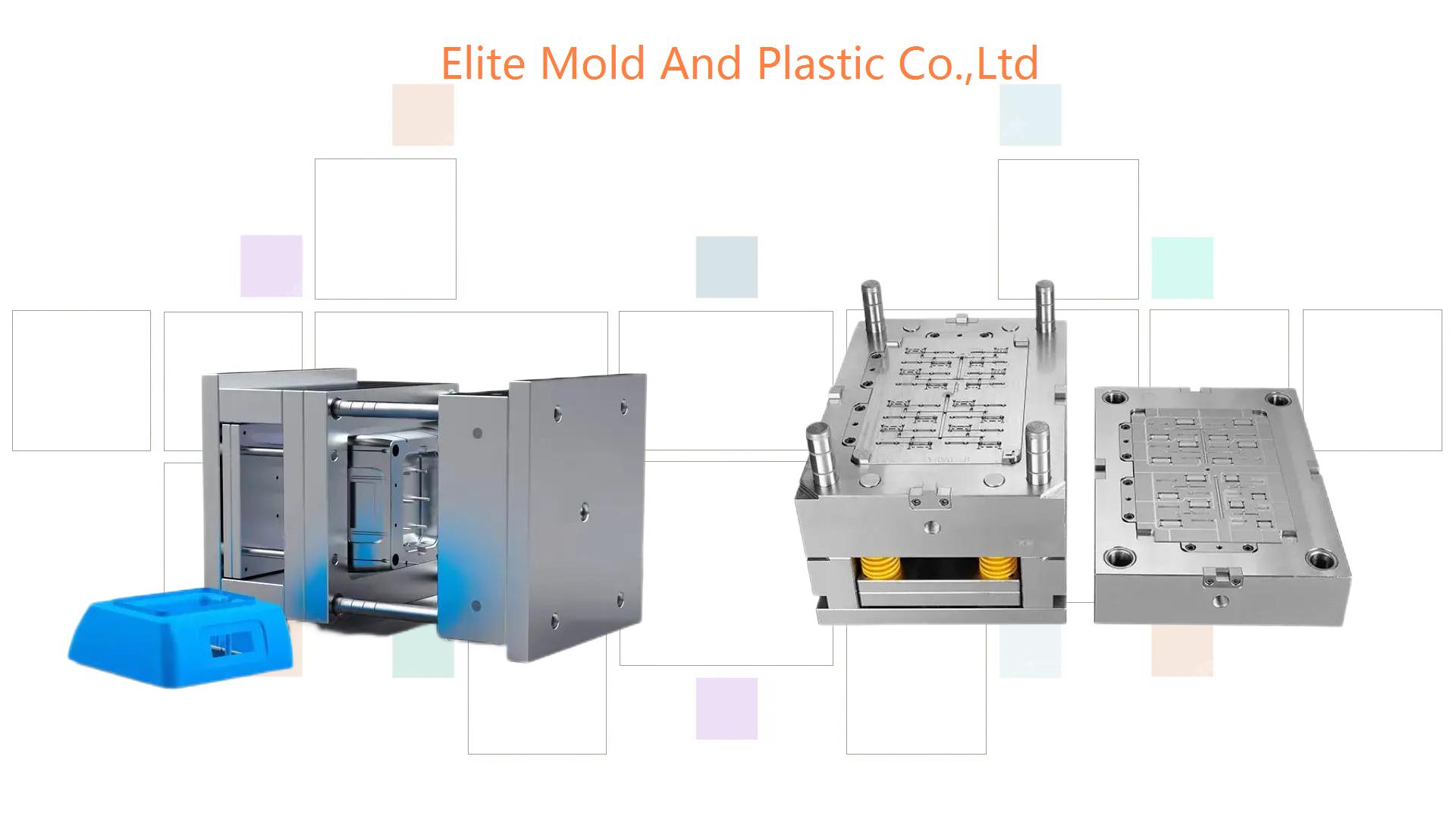

How Parting Line Slider Mold Improve Product Design Flexibility

As a leading Plastic Injection Mold Manufacturer in China, Elite prides itself on offering innovative solutions that meet the unique demands of our clients. One such solution is the Parting Line Slider Mold, a crucial component that enhances product design flexibility in the plastic injection molding process.

In this article, we will explore what Parting Line Slider Molds are, how they work, and how they can significantly improve product design flexibility, offering benefits in manufacturing complex plastic components.


What is a Parting Line Slider Mold?

A Parting Line Slider Mold is a specialized type of injection mold that incorporates sliding mechanisms along the parting line of the mold. This system allows for the production of plastic parts with complex geometries that would otherwise be difficult or impossible to mold using a traditional two-part mold system.

Key Features of Parting Line Slider Molds

  • Slider Mechanism: The mold includes sliding components that move at an angle relative to the mold’s opening and closing direction.
  • Complex Part Geometries: These molds allow for the production of undercuts, overhangs, and other intricate features that cannot be achieved with standard molds.
  • Precision Engineering: Parting Line Slider Molds are designed with precise engineering to ensure smooth operation, avoiding wear and tear over repeated production cycles.

How Parting Line Slider Molds Work

The Parting Line Slider Mold operates by integrating sliding mechanisms within the mold, which move in tandem with the opening and closing action of the mold. These sliders enable the molding of features such as undercuts and side holes that would otherwise require additional post-molding processes or separate mold pieces.

Step-by-Step Process

  1. Mold Closes: When the mold closes, the sliders are positioned to form the part's intricate features, such as undercuts or angled details.
  2. Plastic Injection: Molten plastic is injected into the mold cavity, filling all areas, including the sections controlled by the sliders.
  3. Mold Opens: Upon cooling, the sliders disengage, moving out of the way to allow the part to be ejected without damaging its delicate features.
  4. Ejection of Part: Once the sliders have retracted, the mold fully opens, and the finished part is ejected.



Advantages of Using Parting Line Slider Molds

1. Increased Product Design Flexibility

The Parting Line Slider Mold enables the creation of complex geometries that traditional molds cannot achieve. This means designers have far greater freedom when designing parts, particularly for industries requiring intricate details and undercuts, such as automotive, electronics, and consumer products.

  • Complex Geometries: The slider mechanism allows for the molding of intricate features like side holes, slots, and undercuts without compromising part integrity.
  • Customization Potential: With the flexibility offered by sliders, product designers can create highly customized parts to meet specific industry requirements.

2. Elimination of Secondary Operations

In traditional molding processes, complex parts often require secondary operations such as machining or assembling additional components. With Parting Line Slider Molds, these operations can be eliminated or reduced, as the mold can produce the desired features in one step.

  • Reduced Costs: By eliminating the need for post-molding operations, manufacturers save on labor and machinery costs.
  • Improved Efficiency: Molding the part in a single step speeds up production cycles and reduces overall lead time.

3. Higher Part Quality and Precision

Parting Line Slider Molds are designed for high precision, ensuring that even the most intricate features of a part are accurately formed. This results in higher-quality parts with consistent dimensions and reduced scrap rates.

  • Tight Tolerances: The precision engineering of the slider system ensures that all parts are manufactured to exact specifications, with minimal deviation.
  • Smooth Finishing: The use of sliders helps to achieve a smooth surface finish on complex geometries, reducing the need for further finishing operations.

4. Versatility Across Industries

Parting Line Slider Molds are versatile and can be used in a variety of industries, from automotive and consumer electronics to medical devices and packaging. Their ability to create detailed parts makes them ideal for manufacturers producing complex components.

  • Automotive: Parts with intricate details such as clips, fasteners, or side holes are common in the automotive industry and can be efficiently produced using Parting Line Slider Molds.
  • Medical Devices: Precision is critical in the medical field, and the sliders ensure that intricate components are produced to exact standards.
  • Consumer Goods: Items like household appliances, packaging materials, and toys often feature complex designs that benefit from the flexibility of slider molds.

Parting Line Slider Molds vs. Traditional Molds

Understanding the key differences between Parting Line Slider Molds and traditional injection molds can help manufacturers make informed decisions for their production needs.

FeatureParting Line Slider MoldTraditional Mold
Design FlexibilityAllows for complex geometries and undercutsLimited to simple geometries
Post-Molding OperationsOften eliminates the need for secondary operationsMay require machining or assembly
Cost EfficiencyHigher initial cost, but lower long-term costsLower initial cost, higher secondary operation costs
Production Cycle TimeEfficient, fewer post-production stepsLonger due to additional operations
ApplicationsIdeal for intricate, high-precision partsSuitable for simple parts with fewer design complexities

Applications of Parting Line Slider Molds in Different Industries

1. Automotive Industry

In the automotive sector, the demand for complex, durable, and lightweight plastic components is high. Parting Line Slider Molds are ideal for producing components like connectors, clips, and housings that require intricate features and side holes.

2. Medical Industry

The medical device industry often requires plastic components with precise and complex designs. With Parting Line Slider Molds, manufacturers can create intricate parts such as housings for medical instruments or detailed drug delivery devices.

3. Consumer Electronics

Consumer electronics products are often characterized by compact designs and intricate features. From mobile phone housings to small electronic components, Parting Line Slider Molds provide the design flexibility needed for these detailed parts.

4. Packaging

The packaging industry benefits from the ability to create detailed plastic components, such as tamper-evident closures and unique bottle designs. Parting Line Slider Molds allow for the production of packaging solutions with innovative features.


Why Choose Elite for Your Parting Line Slider Mold Needs?

At Elite, we specialize in the design and manufacture of Parting Line Slider Molds that offer unparalleled product design flexibility. Our team of experienced engineers and technicians is dedicated to providing high-quality, cost-effective solutions that meet the needs of clients across a variety of industries.

Our Advantages:

  • Experienced Team: With years of expertise in the plastic injection molding industry, we deliver precision-engineered solutions that meet the highest standards.
  • Advanced Technology: We utilize cutting-edge technology to ensure that our molds are built to exact specifications and deliver consistent, high-quality results.
  • Competitive Pricing: At Elite, we provide competitive pricing without compromising on the quality of our products.
  • Custom Solutions: We work closely with our clients to design custom Parting Line Slider Molds that meet their specific production and design requirements.

Conclusion

The Parting Line Slider Mold is a powerful tool that offers increased flexibility, precision, and efficiency in plastic injection molding. For manufacturers looking to produce complex parts with intricate features, these molds provide significant advantages, including reduced costs, improved part quality, and shorter production times.

At Elite, we are committed to providing our clients with the best solutions in plastic injection molding. If you're looking to enhance your product design flexibility with a Parting Line Slider Mold, contact us today to learn more about how we can support your production needs.
